应用领域与筒介：/Purpose and introduction

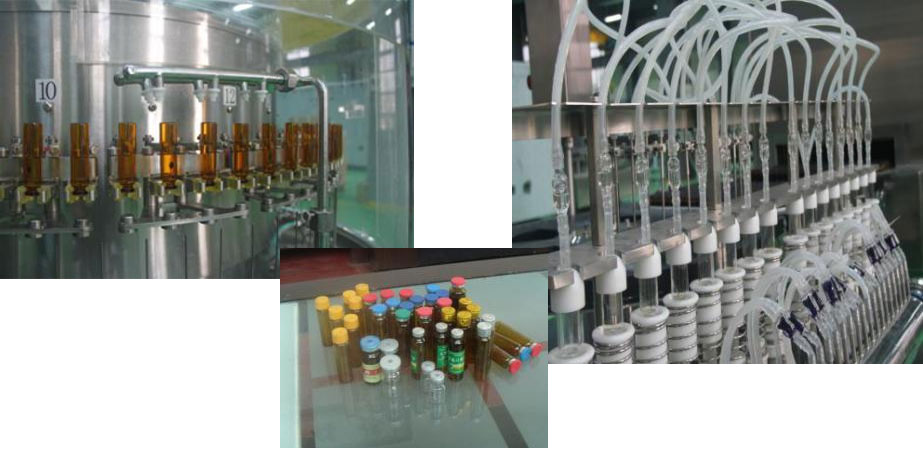

内服药液洗烘灌轧对接线由立试高周波波洗瓶机、铁路隧道式热气 反复的杀菌烘烤箱、内服药液分装轧盖机等形成，適合于 5-30ml 等有所不同规 格内服药液瓶的制作制造。可完工对非处方药制作制造中安瓿瓶淋水、高周波波冲洗、冲水、充 气、风干杀菌、冷却水、分装、轧盖等技艺流程的对接开机运行。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

作用:/characteristic

◆洗瓶机主要包括机戒手夹瓶，用于各种样式的瓶里；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶用到水蒸汽喷针循环往复侦测放入方式英文，洗掉功效好，省下能源开发。并设置针架防抽动配置，的提升喷针放入水瓶座的准确性度，变少断针物理现象引发；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶这个气水滤油器、喷针根本孤立分别，尽量不要了相交造成的污染，复合GMP实验室管理标准的标准；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺丝杆前装个缓冲区块，有保护措施螺丝杆，缩减碎瓶反应Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶主要采用整体化原产数据同步带，接触拨块输送管口服药液，运动增强正规In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆恒温干燥箱选用红外线预散导热管，不锈钢材料预散导热管加厚预热温差不光滑性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆灌装线轧盖机可供选择配工业陶瓷泵、不銹钢泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装线无瓶止灌，无瓶不轧盖作用。Pieces filling without bottle filling, no bottle no rolling function.◆整线进行PLC总把握、直流伺服、触感屏把握高技术，运营安全安全。触感屏可显视各电脑单机的运营状况，各把握点的水量、标准气压、风压气压、摄氏度等显视，各电源开关状况和出现故章率显视，出现故章率个人能力检测和出现故章率分享及检测策略。使一小部分工作方式历程以达到重新化把握，联线具有着三机电气稳定性设备，确保工作方式动态平衡安全。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.利用朋友的应该，还可供配选：According to the needs of customers, but also available for selection:◆西门子PLC、德力西、三凌、台达等国产品牌调节机系统；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气经济压力、水的温度及超声检查波硬度、污物阿尔法粒子、风速等级在线播放测试、报警信号、的记录、复印机设计。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌检测隔绝器装置。Mixer ORABS, CRABS, aseptic isolator system.

的产品参数值：technical parameters

应用规格为Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
装灌要求Filling accuracy(%)	≤ ± 2.5
灌装线头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖通过率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
