借款用途与概述：Purpose and introduction

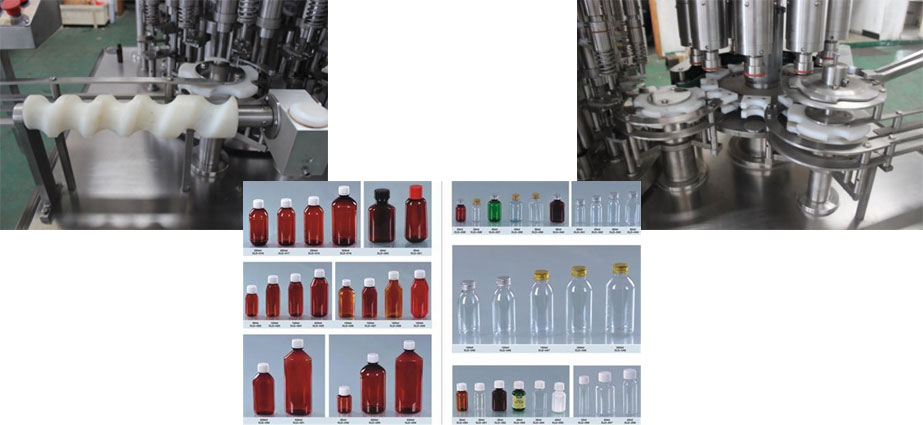

该机可用来于对30-500ML系列作品玻璃钢瓶、材料瓶的分装封膜。主要采用往来往来式气缸做出分装，电磁波谐振送盖，能够 轧盖(不锈钢式)或旋盖(材料盖)封膜，能够 和前后轮的种植流程机器设备快速连接成分种植线，前者能够 在购买百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.

基本特征：characteristic

装量更准，杜尽滴漏问题。缺瓶不装罐。 变频柜可控硅调压。 被动表明运算功能主治。 整个机器均按GMP标准定制。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.

系统参数指标/technical parameters：

型号 model	NQGX30-500
实用規格Cutting dimension	30-500ml
产地学习能力Production capacity	80-200瓶/分（罐/分）80-200 bottles/min (cans/min)
分装可靠性强，精密度 Filling accuracy	≤±1%
电压 Power	380V/50Hz
旋（轧）盖率Spin (rolling) cover rate	≥99%
功率power	3.0 kw
机械设备制造净含量 Machine weight	1500 kg
外形尺寸 boundary dimension	3000*1100*1700mm
