使用用途与筒介/Brief Introduction：

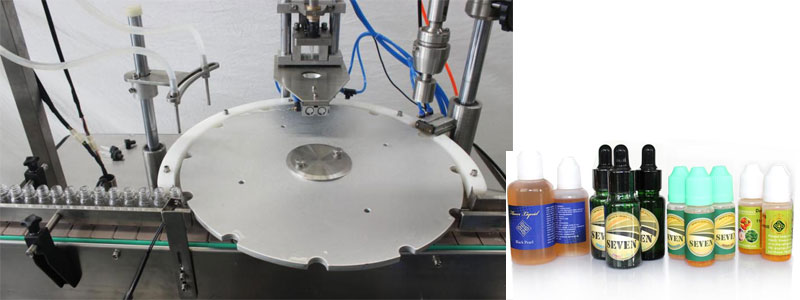

该机适宜于2-30ML各方面的材料的椭圆形扁形材料或安全瓶子的眼灵药装罐生产线.该机由高精密度轴承精度等级机购打造精度等级等分盘位置上塞上盖;速率度轴承机械传动系统打造旋盖头的生降;恒力矩旋盖;蠕动消化泵检定装罐生产线;触感屏操控.无瓶不装罐生产线,不带内塞,外盖.具位置精准,机械传动系统趋于稳定,养护瓶盖子,检定准.控制单纯等的特点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

亮点/Characteristic：

◆微笔记本修改、装量透彻、基本操作便捷。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆主机结构转数可使用调频调频调节。the mainframe running speed is stepless frequency conversion.◆加工量自功参考值把控好。the product quantity can be controlled. ◆多种不同错误代码提示信息性能(如低压力表。无包装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆自行停用功能表，对同一个单轨出现了间断无灌装设备、无内塞状态可自行停用。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

新技术主要参数/Main Technical Parameters：

适用于规格型号Filling Volume	2-30ml
制造本事Productivity	30-60瓶/分  70-100瓶♍/分30-60bottles/min    70-100bottles/min
灌装线精准度Filling Precision	≤±1%
电源线 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
主动上塞率Stoppering rate	≥99%
汽源Air Supply	1.3 m3/h    0.4-0.8Mpa
效率 Power	2.0 kw
机子净含量Weight	550 kg
样貌规格尺寸Dimension	1800*1000*1500mm
