贷款用途与概述/Brief Introduction：

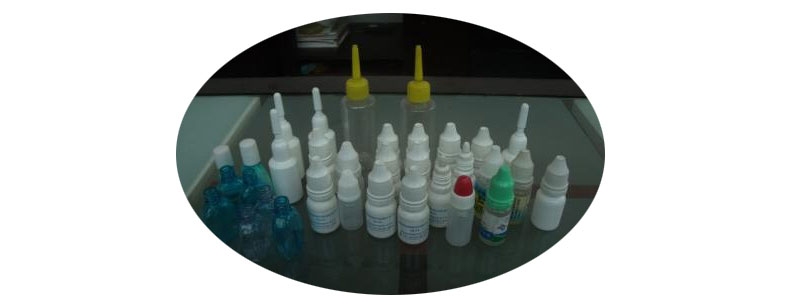

该机实适用2-30ML一些材質的扇形扁形朔料或玻离瓶的眼药剂分装线生产线设备、电子技术烟油等小用量分装线生产线设备.该机由高可靠性强，精密度轴承测量范围培训机构提高测量范围等分盘导航市场定位上塞上盖;提运行速度轴承链传动装置提高旋盖头的升降架;恒转矩旋盖;儒动泵记量分装线生产线设备;触控屏屏把控.无瓶不分装线生产线设备,要加内塞,外盖.具导航市场定位精确度,链传动装置平稳性,自我保护盖子,记量准.实际操作简洁等的特点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

优缺点/Characteristic：

◆微网上选用、装量精准度、方法便捷。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆监控主机转速比可使用无级变速定频调压。the mainframe running speed is stepless frequency conversion.◆制造量一键参考值保持。the product quantity can be controlled. ◆多样系统故障系统提示基本功能(如低空气压力。无装灌、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆自功停止设备运转工作，对同一个轨道组件显示不间断无灌装生产线、无内塞情况发生可自功停止设备运转。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技术设备叁数/Main Technical Parameters：

不适用规格为Filling Volume	2-30ml
产量性能Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
分装高精度Filling Precision	≤±1%
交流电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自功上塞率Stoppering rate	≥99%
安全阀Air Supply	1.3 m3/h    0.4-0.8Mpa
电功率 Power	2.0 kw
服务器重量Weight	550 kg
内部结构尺寸图Dimension	1800*1000*1500mm
